Description: (SBRE)

The Burly KO Conduit entry K05 is a lighting fixture that comes in both round and square shapes. It has an IP65 rating, making it suitable for use in coastal conditions. It is double insulated for added safety and is CCT selectable. The fixture has 4 knockout points for easy cable entry and an integral driver with built-in LED lighting.

Use:
• Application - Commercial use
• Use - Interior or Exterior use
• Warranty - 3 years* (2 years for battery)
• L70 - 54,000 hours
• IP Rating - IP65
• Operating temperature - -10°C to +40°C

Power:
• Voltage - 230V
• Driver - built-in
• Power Factor - >0.5
• Double Insulated - Yes

Light output:
• Lamp Type – Integrated LED
• Wattage - 15W
• Lumens - 1500lm | 1550lm | 1550lm
• Emergency Lumens - 220lm
• Colour Temperature - 3000K | 4000K | 5700K
• CRI - >80
• Beam Angle - 120°
• Dimmable - No

Product info:
• Type - LED Emergency Bulkhead
• IK Rating - IK08

Emergency Specification:
• Compliance: AS/ NZ 2293.3.2018
• Battery Type: LiFePO4 6.4V 1.5Ah
• Battery Wattage: 2W
• Battery Warranty: 2 Years*
• Emergency Lumens - 220lm
• Emergency Run Time: 3 Hours
• Recharge Time: 24 Hours

Physical size:
• Dimensions (mm) - 282Ø x 85

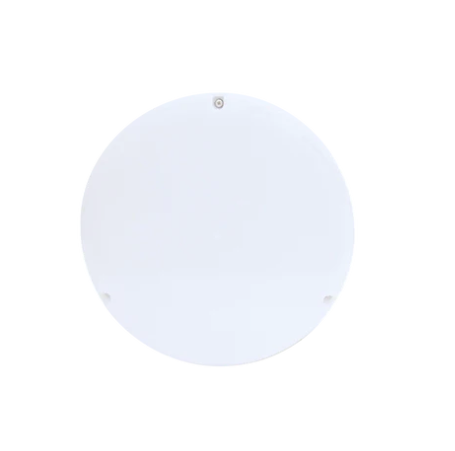

Emergency LED Bulkhead 15watts Round CCT
