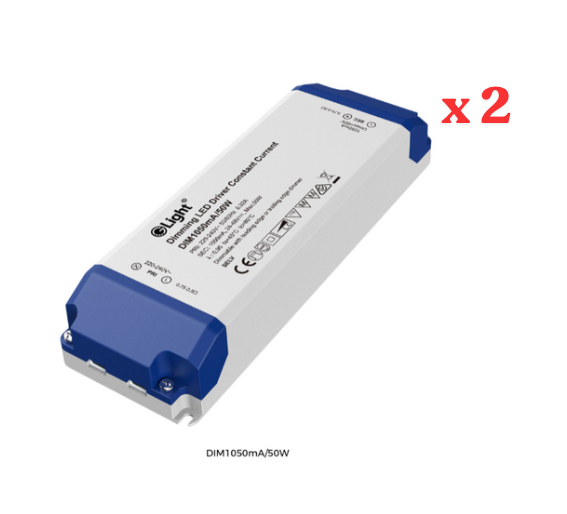

Description: (DIM1050ma/50W)
- Dimmable constant current LED driver
- Independent compact design
- Captured terminal screws
- Wide output voltage extended down to 50%
- SELV (Safety extra low voltage) output
- Dimmable with a leading edge or trailing edge dimmer
Specification:
- Input: 230v
- Output Voltage: 24-48v
- Max Output: 50watts
- Output Current: 1050mA
- Power Factor: 0.95
- Ta: -20 - +50°C
- Dimensions(LxWxH): 166mm x 52mm x 24mm
- Dimming range from 1% to 100%
- IP20 indoor use only
- 3-year warranty
-
Protections: open-circuit, short-circuit, overload, over-temperature
