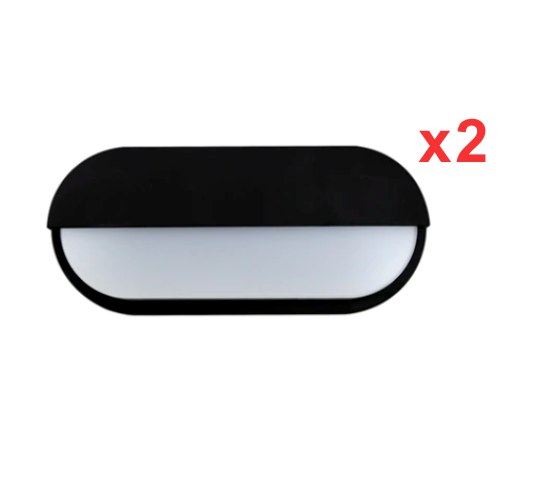

LED Bulkhead 12w Ovate Eyelid Classic

Description: (YBE12W3K/4K-WH/BLK)

The Ovate polycarbonate bulkhead family are a versatile and cost-effective outdoor lighting option. Crafted from UV-protected polycarbonate, with an IP rating of IP65. The Ovate bulkhead family are robust and durable in both residential and commercial environments.

UV polycarbonate is also non-corroding, giving excellent performance and service life in coastal locations.

Product Features:

• Eyelid cover to minimise light pollution
• Suitable for coastal installations
• IP65 high exterior weather protection rating
• Models to suit you situation: Plain, eyelid, dimmable, sensor, tri colour
• Available in two trim colours: White, Black
• Operating temperature -20 degrees through to 50 degrees Celsius.

• Application - Residential & Commercial use
• Use - Exterior use
• Warranty - 5 year
• L70 - 30,000 hours
• Switching Capacity - 30,000
• IP Rating - IP65
• Operating Temp - -20°C to 50°C

Power:

• Voltage - 230V
• Driver - built-in
• Double Insulated - Yes

Light output:

• Lamp Type – Integrated LED
• Wattage - 12W
• Lumens - 620lm or 650lm
• Colour Temperature - 3000K or 4000K
• CRI - >80
• Beam Angle - 120°
• UGR Rating - <19
• Dimmable - No

Product info:

• Type - LED Plain Bulkhead
• Material - UV resistant ABS + Poly-carbonate
• Colour - White or Black
• Mounting - Surface mounted
• IK Rating - IK08

Physical size:

• Dimensions - 230 x 105 x 61mm
• Fixing area - 230 x 105mm

Fast Install:

• No need to remove the diffuser/LED module from the mounting base before fitting it to the surface.

Cost-effective general lighting solutions, suitable for coastal installations where corrosive elements affect other materials
