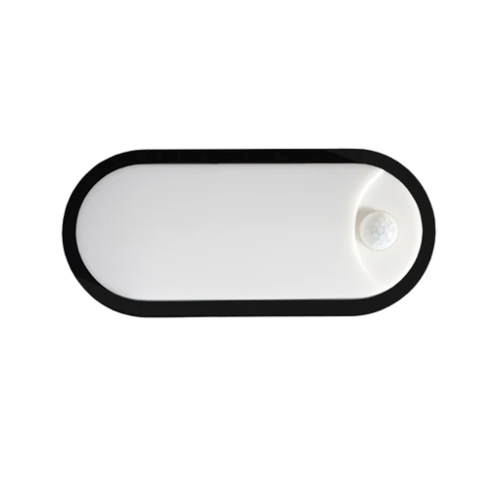

LED Bulkhead with Sensor 12w Ovate CCT

Description: (YBHPIR-BLK/WH)

The Ovate polycarbonate bulkhead family are a versatile and cost-effective outdoor lighting option.  Crafted from UV-protected polycarbonate, with an IP rating of IP65. The Ovate bulkhead family are robust and durable in both residential and commercial environments.

UV polycarbonate is also non-corroding, giving excellent performance and service life in coastal locations.

Product Features:

• Integrated PIR sensor
• Suitable for coastal installations

• IP65 high exterior weather protection rating
• Available in two trim colours: White, Black

• Operating temperature -20 degrees through to 50 degrees Celsius.
• Other models include: Plain, eyelid, dimmable, tricolour

Use:

• Application - Residential & Commercial use
• Use - Exterior use
• Warranty - 5 year
• L70 - 30,000 hours
• Switching Capacity - 30,000
• IP Rating - IP65
• Operating Temp - -20°C to 50°C

Power:

• Voltage - 230V
• Driver - Built-in
• Double Insulated - Yes

Light output:

• Lamp Type - Integrated LED
• Wattage - 12W
• Lumens - 930lm (3K) / 1070lm (4K) / 970lm (5K)
• Colour Temperature - CCT= 3000K / 4000K / 5000K
• CRI - >80
• Beam Angle - 120°
• UGR Rating - <19
• Dimmable - No

Product info:

• Material - UV-resistant ABS + Polycarbonate
• Colour - White or Black
• Mounting - Surface mounted
• IK Rating - IK08

Physical size:

• Dimensions - 230mm x 105mm x 61mm

Sensor:

• Integrated PIR Sensor
• Easy screw through the base mounting
• 6 Metre detection distance
• Lux & Time duration dial: 5 sec - 8mins.
• Detection distance is Max.6m ± 1m
• Tri-Colour switch offering: 3K, 4K & 5K.
• Easy to use push connection terminals
• Smooth light distribution
