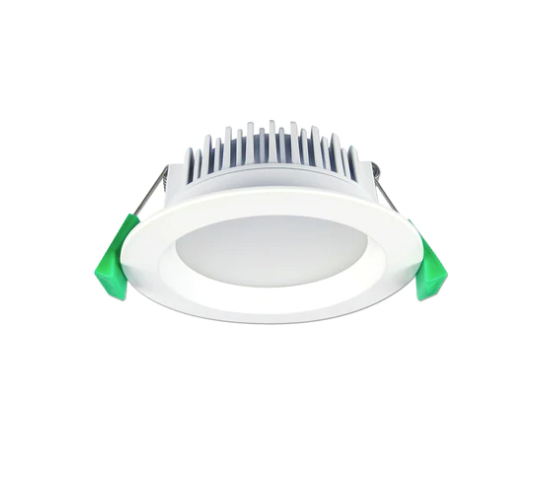

LED Downlight 12w GEO Single Color

Description: (ICDLR12W3K4K)

GeoLED downlights are a general-purpose range of downlights. Perfect for task lighting installations in either residential or commercial situations.

Use the GeoLED range in new or retrofit builds. Available in warm, natural, or cool white color temperature options to allow you to easily enhance your space and create the ambiance to suit.

A large-size connector block paired with a removable/replaceable driver makes installation and maintenance a breeze.

The powder-coated aluminum body offers a sleek look, whilst the PPMA diffuser casts a smooth distribution of light.

Use:
• Application - Residential & Commercial use
• Use - Interior
• Warranty - 5 year
• L70 - 54,000 hours
• Switching Capacity - 30,000
• IP Rating - IP44

Power:
• Voltage - 230V
• Driver - Complete with coverable driver
• Power Factor - > 0.9

Light output:
• Lamp Type – Integrated LED
• Wattage - 12.2W (including the driver)
• Lumens - 1020lm (3K) or 1040lm(4K)
• Colour Temperature - 3000K or 4000K
• CRI - >80
• Beam Angle - 90°
• UGR Rating - <19
• Dimmable - Yes
• Max ambient operating temperature: +45°C

Product info:
• Type - 12W Round Fixed Downlight
• Material - Aluminium, corrosion resistant A6063 alloy
• Colour - White
• Shape - Round
• Mounting - Recessed

Physical size:
• Dimensions (mm) - 108Ø x 40H
• Cut-out (mm) - From 82-98Ø
• Rating - IC-F/IC-4
• *HCB: 0mm | *SCB: 0mm | Height of fitting: 40mm

Note:
• DALI Dimming available on request. (3K & 4K models only)

*HCB & SCB clearances of 0mm does not mean that you can drill a hole in solid concrete or wood and install a downlight. You must always allow for heat dissipation.
