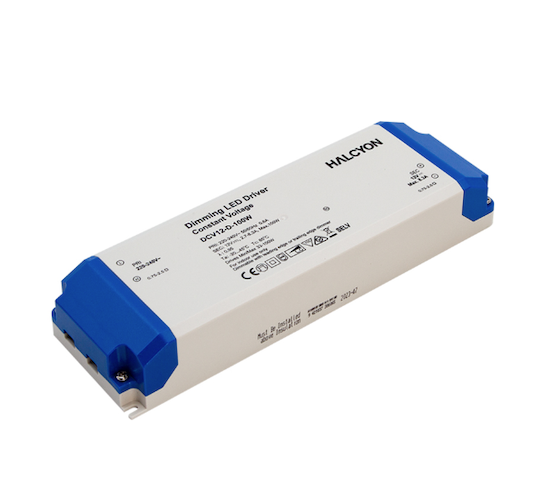

Description: (DCV12-D-100W)
- Leading / Trailing Edge Dimmable
- Operating temp range -20..+45°C
- Analogue Flicker-free
- 1 - 100% Dimming Range
- Constant Voltage [Parallel Circuit]
-
SELV Equivalent
-
Overload / Short Circuit Protection
-
Overheat protection
-
Safe no-load operation
- DC input compatible (176-250V DC)
Specification:
- Watts: Selectable 33W-100W
- Width: 67mm
- Length:210mm
- Height: 34mm
- Input: 220-240V 50/60Hz
- Ingress Protection: IP20
- Dimming/Control: Primary Dimmable
- Driver Output Current: 2.7-8.3mA
- Electrical Class: Class II
- Driver Output Voltage: 12V
- Warranty: 5-Year Warranty
